Product guide

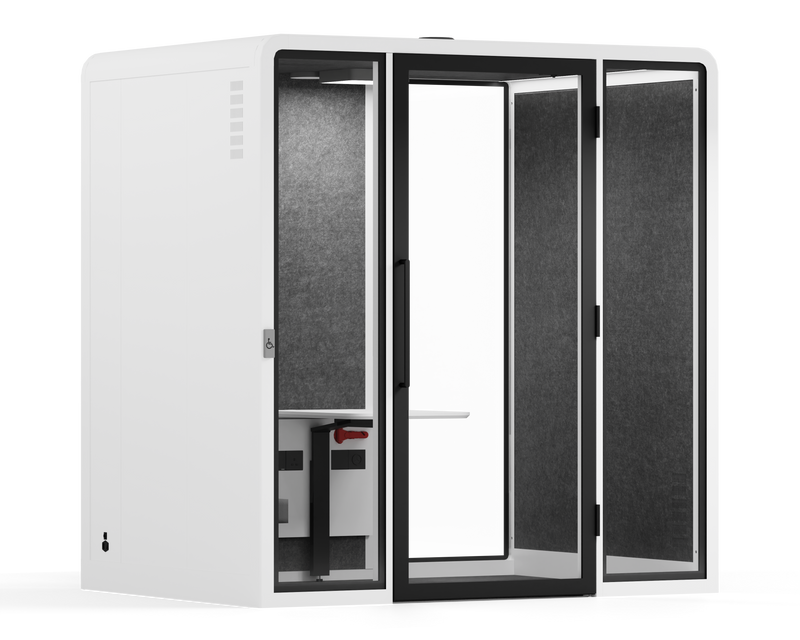

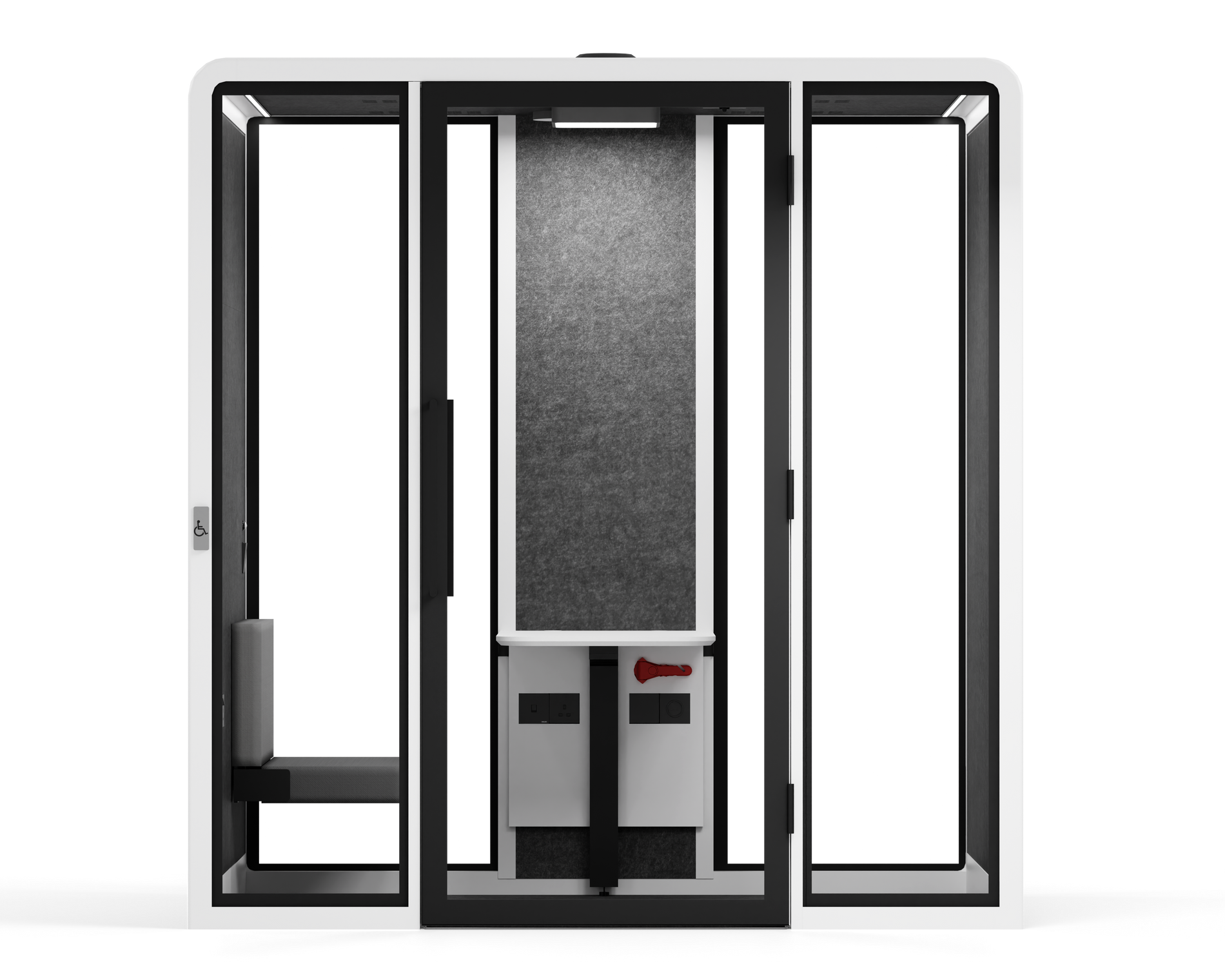

Large Access Meeting Booth
Our large and extra-large access booths are thoughtfully designed with inclusivity in mind, ensuring comfort and accessibility for everyone. Ideal for meetings, events, or personal breaks, these booths cater to diverse needs, offering accessible, private, and comfortable spaces.
Key Features:
- DDA Compliant and Inclusive Meeting Spaces: Designed to meet diverse accessibility needs, including wheelchair access.
- Soundproof Meeting Booth: Advanced acoustic design ensures privacy and focus, ideal for busy environments.
- Customisable Options: Includes height-adjustable optional office chair, fold down sofa bench.
- Accessible Button Design: "Push to Open" button for enhanced accessibility.
Spacious and Accessible Design
- Ample Space for Mobility: Designed for easy navigation and accommodating wheelchairs.
- Comfortable Group Use: Spacious enough for multiple users, suitable for group meetings or personal use.
Soundproof and Acoustic Design
- Enhanced Privacy: Soundproofing ensures a quiet atmosphere for meetings, video calls, and focused, productive working environment.
- Acoustic Design: PET panels and toughened glass provide excellent sound insulation.
Inclusive and Adjustable Features
- Inclusive Design: Height-adjustable tables and chairs cater to various physical needs.
- Ergonomic Comfort: Optional pressure-relieving cushions and ergonomic seating available.
Friendly Environment
- Reduced Noise Levels: Soundproof panels prevent sensory overload, ideal for individuals with sensory processing disorders.
Advanced Communication Technology
- Accessible Video Conferencing: Includes assistive technology for seamless communication.
- Inclusive Tools: Features such as hearing loops, screen readers, and voice-activated systems ensure full participation.
Versatile Usage
- Multi-Purpose Design: Ideal for meetings, video calls, rest areas, and personal consultations.
- High-Traffic Compatibility: Suitable for offices, airports, conferences, and public events.
Safety and Privacy
- Enhanced Safety Features: Non-slip floors, safety rails, and emergency buttons ensure user safety.
- Privacy and Dignity: Includes private screens and accessible facilities for personal care needs.
For more information or to inquire about custom solutions, contact us today.
Close door
Open door
Finer Details
Design, Function & More
Internal Size:
Height: 214cm Width: 204cm Depth: 150cm
External Size:
Height: 230cm Width: 220cm Depth: 153.6cm
Weight:
Total: 620kg (Pod)
Total: 745kg (Pod+Furniture)
Leading The Sound Pod Industry
STC 30dB (±5dB) &
RT0.25s (±0.1s)
Daiki Verified
ISO 23351-1
External Frame
Aviation Type Alloy, Cast Aluminium Corners
Nanometer PP Finish
External Panels
Carbon Composite
≤0.071kg CO2e
Glass
10mm Tempered Glass Front & Back, Similar To High Speed Trains ≤0.4MJ
Damping Feet
Vibration control
Internally
Acoustic PET board (Recycled Plastic Bottles)
Double Turbo Fan / 4 Inlet + 2 Outlets, Highly efficient airflow change rate at 551 m³/h (max) refreshing air every minute, guaranteeing excellent oxygen rates. A low-noise air system via multi-channel air ducts allows minimum noise disturbance inside and out.
LED
*Square 4000k, 50Lx, Daylight
*Side Strips 4000k, 50Lx, Daylight
*Multiple Power Outlets, 220- 24V + USB, USB-C
*Energy Saving Motion Sensor
*Bluetooth Audio System
*Ethernet (Cat 6) Connector
Optional Office Chair x1, Draw down soft open table. Furniture specifically built for these pods is an excellent option for functionality comfort and style whilst allowing maximum space without feeling crowded. *monitor not included.
Emergency Safety Hammer
Included For Internal Fitting
Fire Rated Foam
UK Fire foam where required.
Sprinkler / Mains Fire Alarm
Laser cut (25mm) and usable if required
Formaldehyde Free
No wood or glue
Recycled materials approx
≥180kg (12m²/0.66m³) each
Carbon Footprint
≤0.071kg CO2e
Energy Consumption
≤0.4MJ
Inclusive Worplaces
Our Inclusivity meeting booths allow flexibility in the work place for all. Allowing for focused, productive meetings for a all.
Modern Applications
Lights, Power, Action! Within the Folio 4 Meeting Booth sits a mini sofa, cushioned for comfort but primarily for support, complimented by an organically curved task desk.
Equipped with non-directional main Daylight LED lighting, UL/CE 2 * 220-240v power sockets (UK or EU), 2 * CAT-6 Ethernet Connectors, 2 * USB and 2 * USB-C will power the devices required. The PIR sensor will help save on power, automatically turning off after 5mins of not being occupied.
Passive Lighting
Our wheel chair accessible Meeting Booths have non-directional main *4000k (150Lx) Daylight LED lighting, offering a comfortable, well-illuminated environment.
Wheel Chair Access? No Problem!
Offering inclusivity for all users. The new low floor access offers the ability for wheel chair to enter with ease, the option of bench use and adjustable pull down table use.
Easy Access Pad
Allowing easy access the door open button allow easy access to wheel chair user. The drop table also allow for easy access and flexiability.
A Comfort Cocoon
Acoustics-controlled environments develop motivation, well-being, mindfulness, productivity, and focus.
62%
Increase work motivation
44%
Increase the ability to focus
52%
Increase performance in tasks that require full concentration
29%
Reduced pressure level
55%
Reduced session interference
18%
Reduced error rate
Sykes, David M., PhD., 2004, “Productivity: How Acoustics Affect Workers’ Performance in Open Areas”
You're in good company.
FAQs
The booth features a touchless sensor located on the left side of the frame for effortless access. Simply wave your hand in front of the sensor, and the door will open automatically—providing a seamless, hygienic, and user-friendly entry experience.
Our agile acoustic DDA booths are floor level entry, allowing easy access for wheel chairs. Additionally the touch less entry button automatically opens the door for users.
Sustainability is a core aspect of the Access Booth's design. It incorporates recycled materials, with each booth containing approximately ≥180kg of recycled materials per 12m²/0.66m³. The booth also boasts a remarkably low carbon footprint of ≤0.071kg CO2e and minimal energy consumption of ≤0.4MJ, aligning with our commitment to eco-conscious design.
No. All our booths come with a 13amp power supply which plugs into the side of the booth with standard insert. Plug into your wall socket with locally supplied wall plug. If you are purchasing in UK, Europe, US or the UAE you will be supplied with local wall socket and correct electrical certificated components CE / UL Certificated.
Our meeting and phone booths require simple installation, we recommend using our professional installation team. Each booth features a built-in power inlet on the side with an integrated 13-amp fused spur. Once assembled, the included 2-metre cable simply plugs into a standard mains socket, making setup simple.
All of our meeting and phone booths are plug and play, meaning once built there is an insert for a 13amp cable on the side of the booth which approximately 2 metres long. This is the simply plugged into your normal power socket.
(UAE, UK / USA, Euro, Swiss supplied depending on the delivery address.)
Yes - Regarding the classification of goods for profit and loss purposes, all our products are categorised as movable office furniture. They come with a five-year warranty, which indicates that they are manufactured to last beyond 12 months. Consequently, office furniture is typically regarded as a fixed asset and can be depreciated over time.
