Movable Office Pod
A private, productive, and comfortable
place creates creativity. Various sizes are
suitable for many environments, from
office, hospitality, and medical to music.
TUV.SUD Certification
FSC Certification
UL Certification
CE Certification
ISO Certification
FULLY CERTIFIED & TESTED

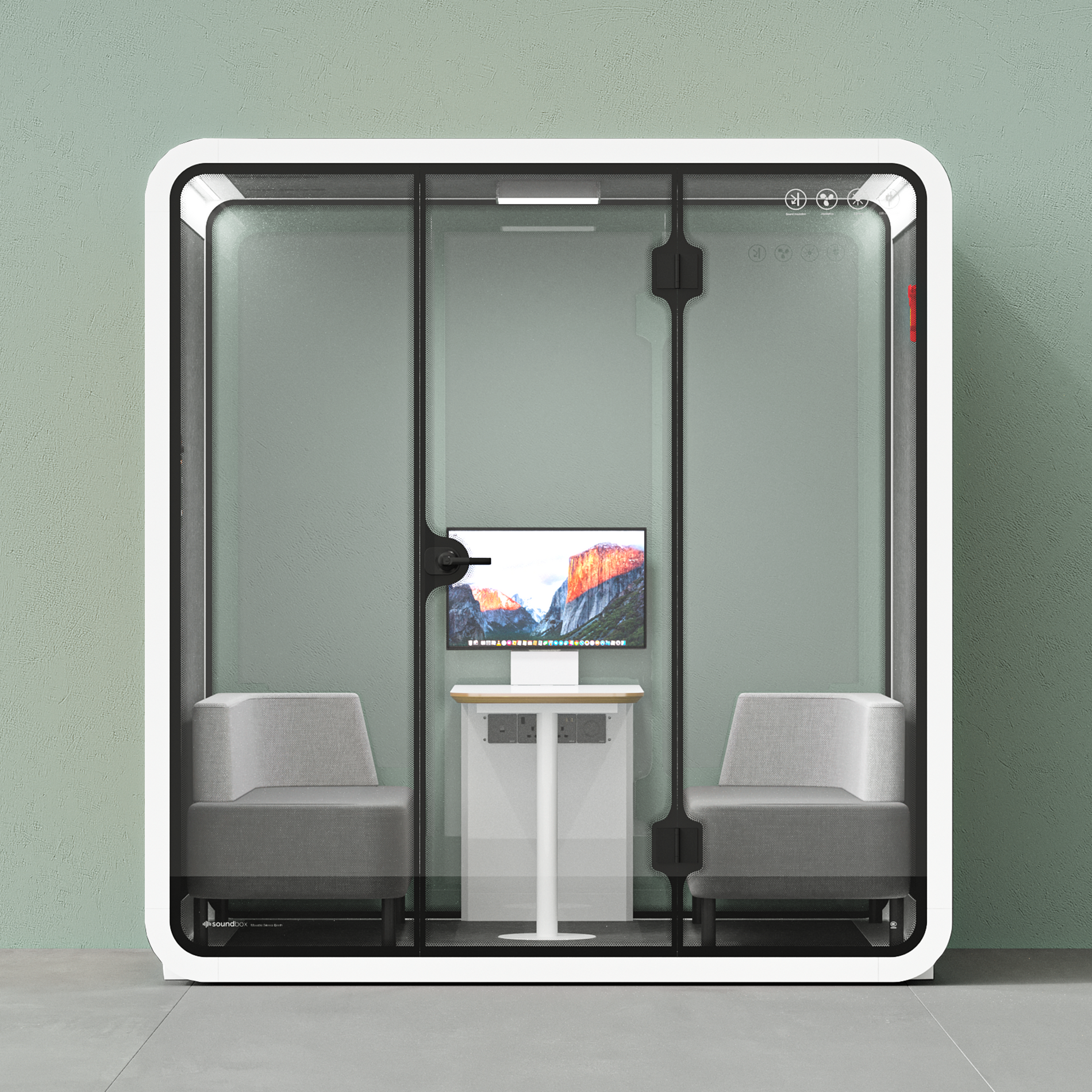

Office Pod
Introducing our soundproof office pod designed specifically for focus-driven working environments. Our office pod comfortably seats 4 people, making it perfect for conference, private, or group Zoom calls.
One of the standout features of our office pod is the highly effective new upgraded industry-leading airflow dual silent ventilation system. This ensures the internal environment remains well-aired, cool, comfortable, and spacious, with minimum internal/external acoustic influence. This promotes a conducive atmosphere for productive meetings, allowing your teams to focus on the job.
The furniture options include quality sofas and tables, and an optional monitor stand (monitor not included) is available to facilitate video conferencing and presentations. Our meeting booth is fabricated from aviation-style alloy, full toughened glass, and internal PET sound acoustic panels, making it sturdy and durable.
Our soundproof office pod is the perfect solution if you're looking for an acoustic office pod for your office. Its design provides a private and distraction-free environment for conducting meetings, collaborating, and concentrating on important tasks.
Our office pod is a sound investment for any office, providing a comfortable, private, and productive team environment. The keywords that describe our product are soundproof meeting booth, office meeting booth, acoustic meeting booths, and meeting booths for offices.

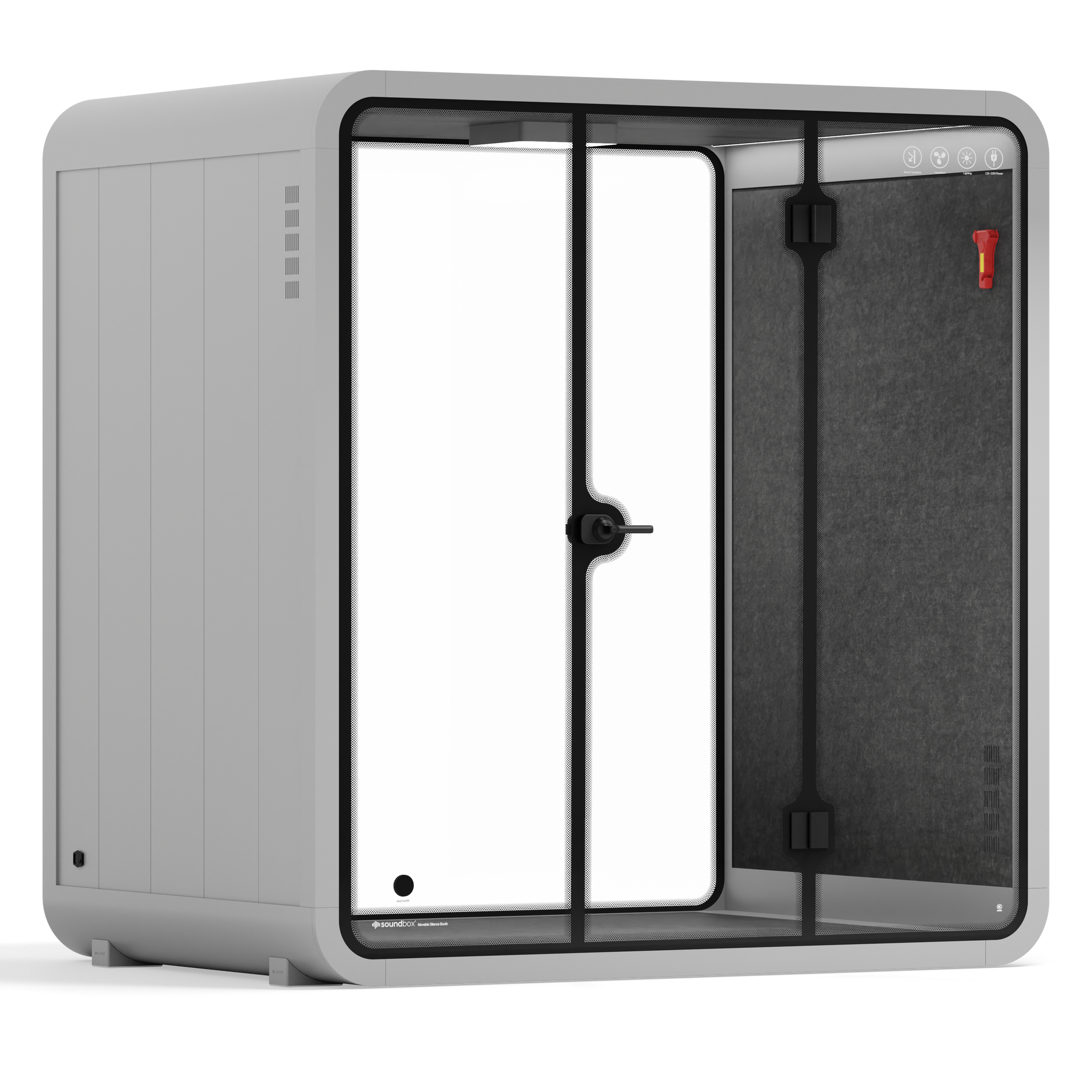

Close door
Open door
Experience This Phone Booth Yourself

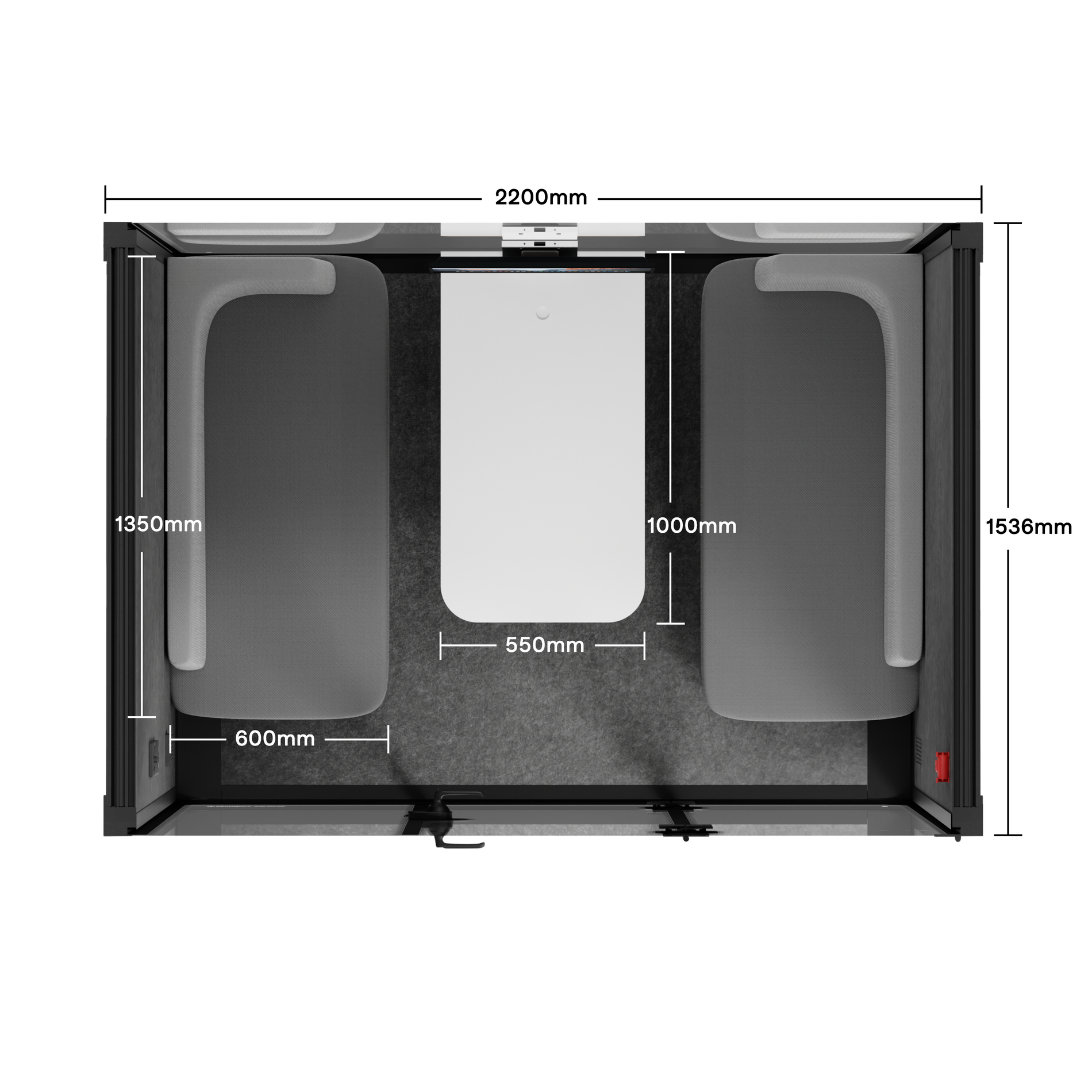

Dimensions and details
Internal Size:
Height: 214cm Width: 204cm Depth: 150cm
External Size:
Height: 230cm Width: 220cm Depth: 153.6cm
Weight:
Total: 620kg (Pod)
Total: 745kg (Pod+Furniture)
Leading The Sound Pod Industry
STC 30dB (±5dB) &
RT0.25s (±0.1s)
Daiki Verified
ISO 23351-1
External Frame
Aviation Type Alloy, Cast Aluminium Corners
Nanometer PP Finish
External Panels
Carbon Composite
≤0.071kg CO2e
Glass
10mm Tempered Glass Front & Back, Similar To High Speed Trains ≤0.4MJ
Damping Feet
Vibration control
Internally
Acoustic PET board (Recycled Plastic Bottles)
Double Turbo Fan / 4 Inlet + 2 Outlets, Highly efficient airflow change rate at 551 m³/h (max) refreshing air every minute, guaranteeing excellent oxygen rates. A low-noise air system via multi-channel air ducts allows minimum noise disturbance inside and out.
LED
*Square 4000k, 50Lx, Daylight
*Side Strips 4000k, 50Lx, Daylight
*Multiple Power Outlets, 220- 24V + USB, USB-C
*Energy Saving Motion Sensor
*Bluetooth Audio System
*Ethernet (Cat 6) Connector
Optional Sofa, Table and Monitor stand available. Furniture specifically built for these pods is an excellent option for functionality comfort and style whilst allowing maximum space without feeling crowded. *monitor not included.
Emergency Safety Hammer
Included For Internal Fitting
Fire Rated Foam
UK Fire foam where required.
Sprinkler / Mains Fire Alarm
Laser cut (25mm) and usable if required
Formaldehyde Free
No wood or glue
Recycled materials approx
≥180kg (12m²/0.66m³) each
Carbon Footprint
≤0.071kg CO2e
Energy Consumption
≤0.4MJ

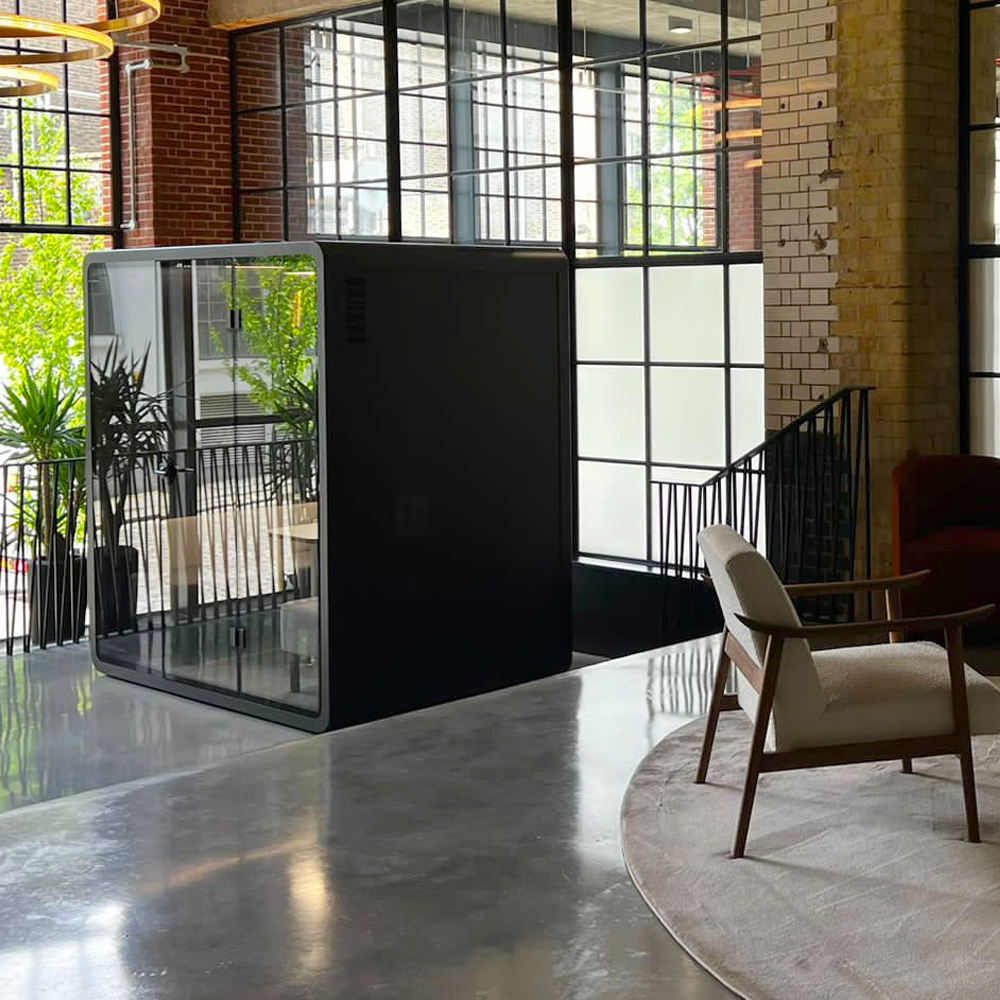

Customer Gallery
Malý výběr fotografií zákazníků

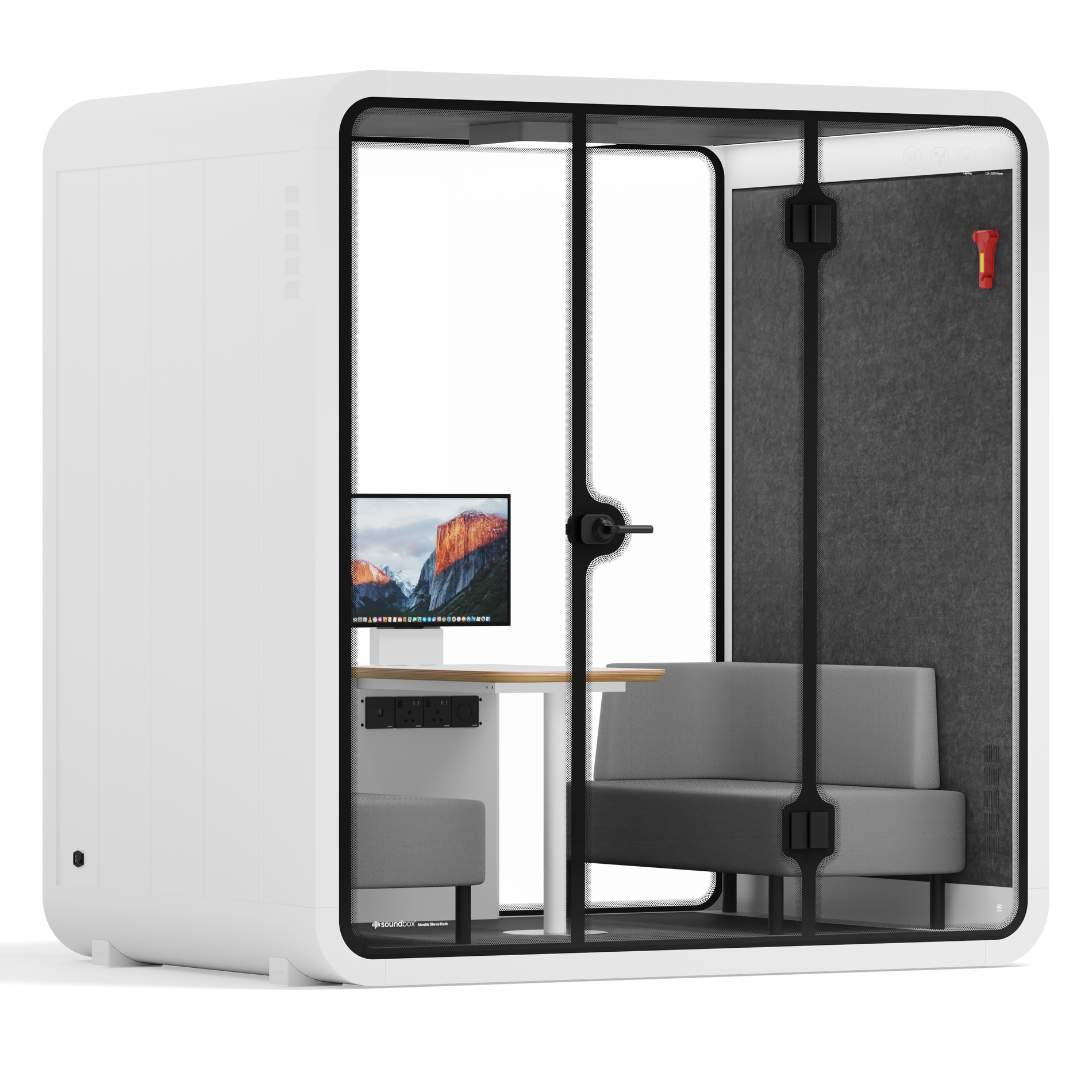

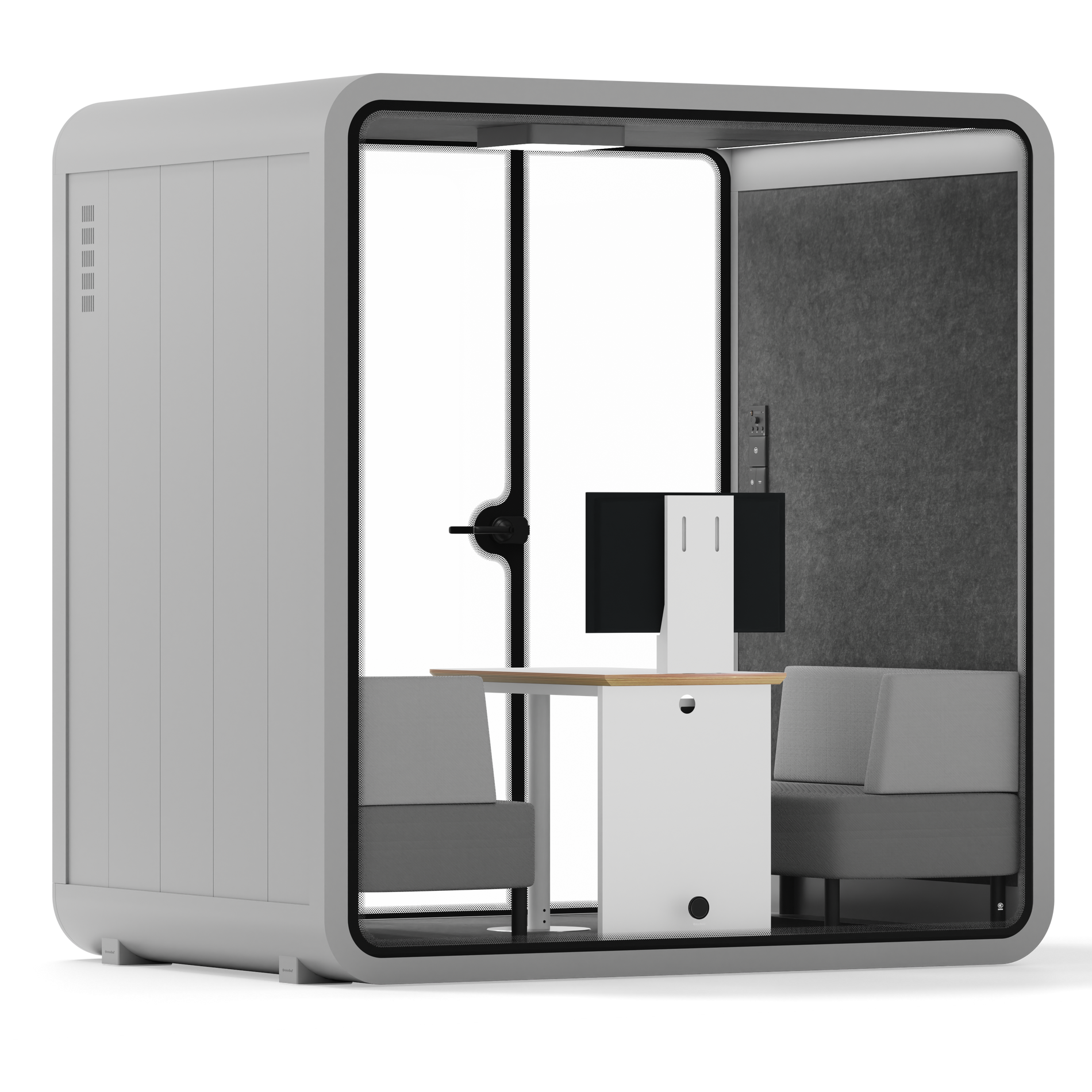

4 Person Office Pod
Introducing our soundproof office pod designed specifically for focus-driven working environments. Our office pod comfortably seats 4 people, making it perfect for conference, private, or group Zoom calls.
Mindful In Design
Primarily an acoustic control company, technically engineers; design-wise, we are creators. Our furniture packs have been developed over years of trials and customer feedback: functional, comfortable, and organic design. Whilst still maintaining hardwearing upholstery, build quality and finish.
New, Upgraded Lighting
Quell Design now offers as standard additional LED strip lighting 4000k 50Lx Daylight, neatly designed on either side of the meeting and conference booths. Powered separately from the leading central light-creating task or ambient lighting.
New - Turbo Fan System
Introducing the new Turbo Fan, sleeker in design with more airflow, creating ample comfort and a refreshing environment.

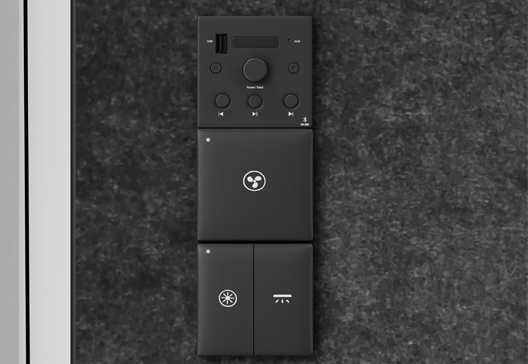

Power + Bluetooth
UL & CE Certificated
Bluetooth Control System with speaker, connect devices for calls, zoom calls or music.
Switches for LED lighting and ventilation power.
Motion Sensor - Only use power when in use.
1 * 220-240 Power Socket UK/ EU
2 * USB DC 5V, 2.1A.
1 * USB-C DC 5V, 2.1A.
* Twice as many power outlets with furniture option.
Ground Breaking Tech
SQuell Design is a fully engaged company focusing on the highest technological advancements, creating highly efficient, creative, focused work environments, and continually striving for excellence in technology and acoustic engineering.
A Comfort Cocoon
Acoustics-controlled environments develop motivation, well-being, mindfulness, productivity, and focus.
62%
Increase work motivation
44%
Increase the ability to focus
52%
Increase performance in tasks that require full concentration
29%
Reduced pressure level
55%
Reduced session interference
18%
Reduced error rate
Sykes, David M., PhD., 2004, “Productivity: How Acoustics Affect Workers’ Performance in Open Areas”
